Product Details:
Payment & Shipping Terms:
|
Name: | High Speed Friction Washer | Processed Material: | PP PE PET PS ABS PC Ect. |
---|---|---|---|
Capacity: | 500~3000kg/h | Motor Power: | 15~37KW |
Material: | Part Contact With Material Are SS304 | Application: | Machine In Plastic Recycling Washing Line |
Function: | Strong Friction Washing For Dirty Plastics | Mesh Tunnel: | Stainless Steel |
Keywords: | Plastic Recycling Washer | ||
High Light: | SS304 pp pe film washing system,Recycling pp pe film washing system,SS304 Plastic Friction Washer |

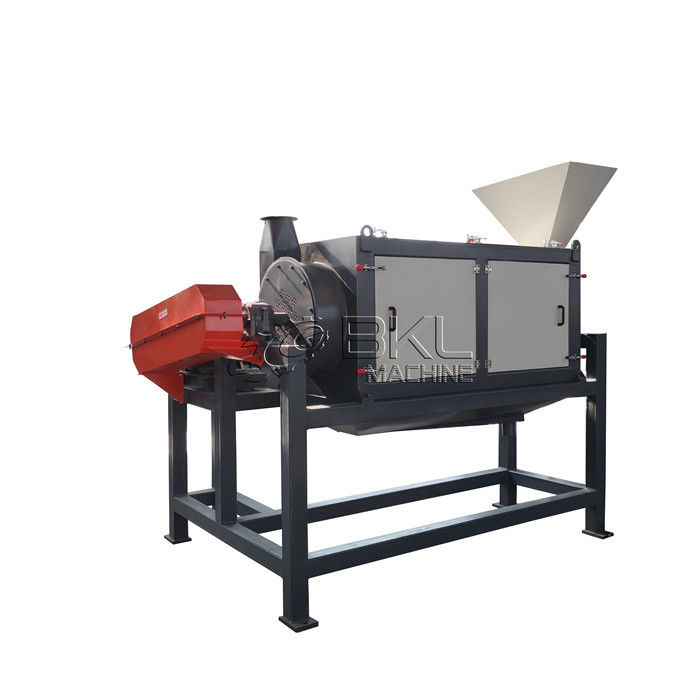

PE Film Washer Plastic Friction Washer High Speed Friction Washer
Description :
The high speed friction washer has been designed to wash highly contaminated rigid or flexible plastic flakes which come from a primary shredder or from a grinder or a cold/hot washing tank.
The centrifugal effect of the plastic friction washer is based on mechanical friction combined with the use of a big quantity of water in order to guarantee a very good cleaning effect of the product. For less contaminated materials the high speed friction washer machine can be used as ‘dry separator”.

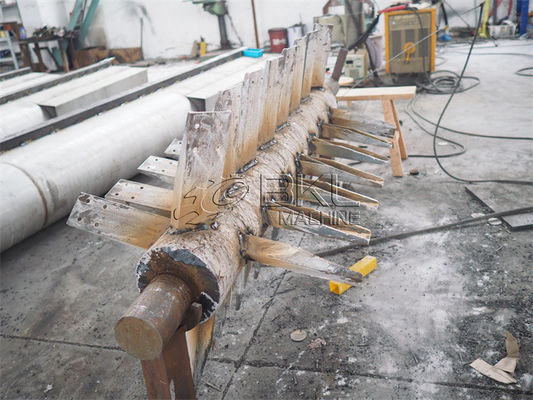

The heavy duty inner rotor turns at high speed, and its dedicated geometry makes it possible to avoid blockings with medium-size pieces too. Contaminants and dirty water are then ejected through a holed screen and collected in the discharging stainless steel hopper.
Main models&specifications:
Models | Motor power | Rotor diameter | Rotating speed |
HSW450 | 15 / 22kw | 450mm | 1200rpm |
HSW550 | 37kw | 550mm | 1200rpm |
HSW600 | 45kw | 600mm | 1200rpm |
Application material:
Highly contaminated materials such as plastic flakes and plastic films,such as Post-Consumer Packaging Waste and Used Containers & Baled Blue Drums,Agricultural Film,Beverage Bottles and Containers,Post-industrial FIlm & Sheet Waste. Contaminants include paper and plastic labels, dirts, sands and grease.
1. PP PE film and flakes
2. HDPE film and flakes
3. LDPE film and flakes
4. PET flakes

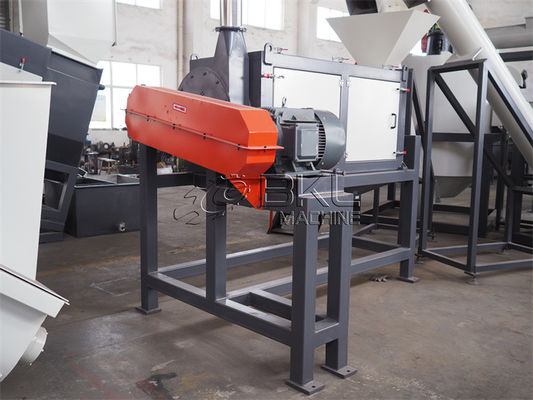

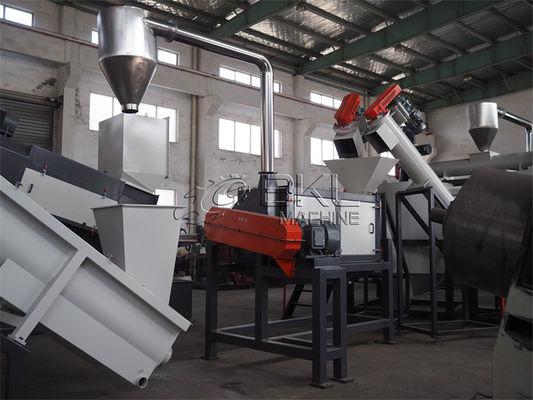

Photos for reference :
