Product Details:
Payment & Shipping Terms:
|
| Machine Name: | Plastic Recycling Equipment | Screw Diameter: | 100mm |
|---|---|---|---|
| L / D: | 28,10 | Plastic Processed: | PE,PP,HDPE,LDPE Film |
| Output: | 250 - 350 Kg / H | Compactor Motor: | 55KW |
| Main Motor: | 90 KW | Baby Extruder: | 30 KW |
| Keyword: | PE Film Recycling | ||
| High Light: | Two Stage PET flakes Pelletizing Machine,100mm PET flakes Pelletizing Machine,100mm plastic film pelletizing machine |
||
Two Stage Pelletizing System In Plastic Recycling Equipment
Description:
Two Stage Pelletizing System belong to plastic recycling equipment equipped with a cutter compactor ( agglomerator) on main extruder compared with the ordinary granulation machine. This new design makes the machine in compact structure,Meanwhile, the material will be pre-heated,cut,mixed to granulas shape and feed into extruder evenly. The degassing system and hydraulic screen changer equipped on extruder for get high purity pellets finally.The cutting system adopts to die face (water-ring) or strand( spaghetti) cutting for varies material application.
Two stage extruder is ideal choice for recycled film material with some moisture percent,such as washed or heavy printed PE films/ PP raffia/ woven ect.
Working Flow of Two Stage Pelletizing System:
Belt conveyor → Cutter compactor(agglomerator) → Main extruder → Hydraulic screen filter changer→ Second stage extruder → Hydraulic screen filter changer→ Water ring cutting pelletizing → Vibration machine → Dewatering machine → Blower → Storage hopper → Electric control panel
Technical parameters for Two Stage Pelletizing System:
| Seires | Model | Screw Diameter(mm) | L/D | Capacity (kg/h) |
| ML | 85-85 | 85 | 33~36:1 +10:1 | 150~250 |
| 100-100 | 100 | 33~36:1 +10:1 | 250-350 | |
| 130-130 | 130 | 33~36:1 +10:1 | 450-600 | |
| 160-160 | 160 | 33~36:1 +10:1 | 650-800 | |
| 180-200 | 180,200 | 33~36:1 +10:1 | 800-1100 |
Advantages:
1.High efficiency
Compared with the primary design,the output of BKL plastic recycling granulation line has been increased 20%.
2.Low power consumption
The power consumption reduced 15% compared with the primary design.
3.Highly automatically
Only 2 people for one

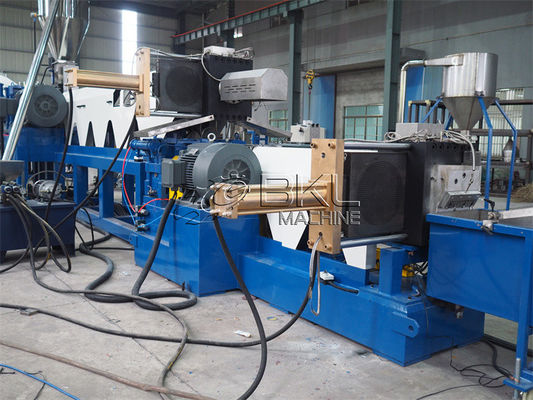

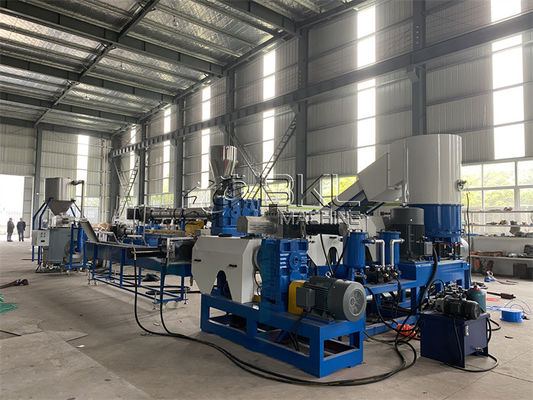

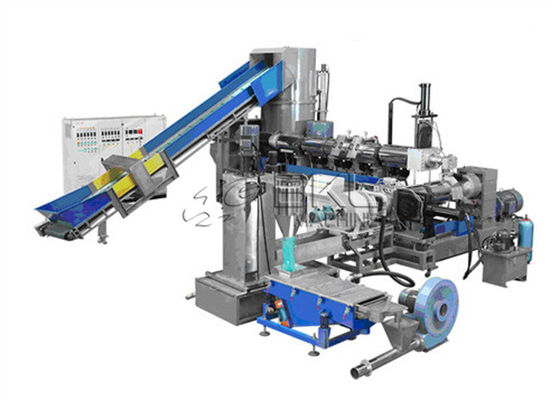

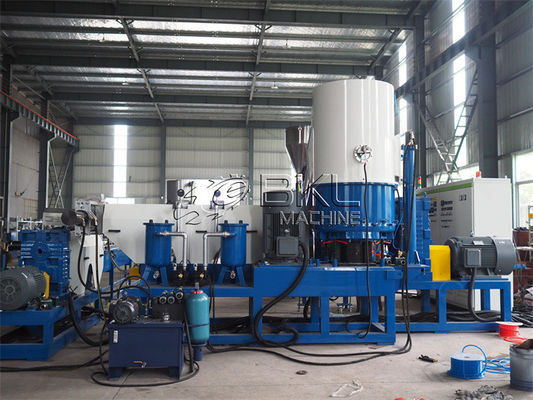

Photos for Plastic Recycling Equipment:
Pellets Products:
