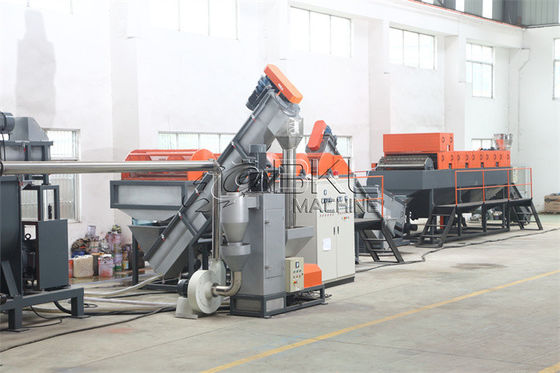

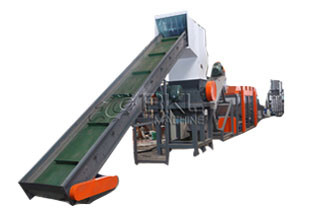

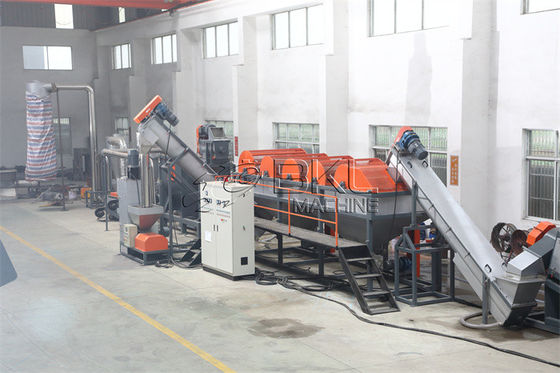

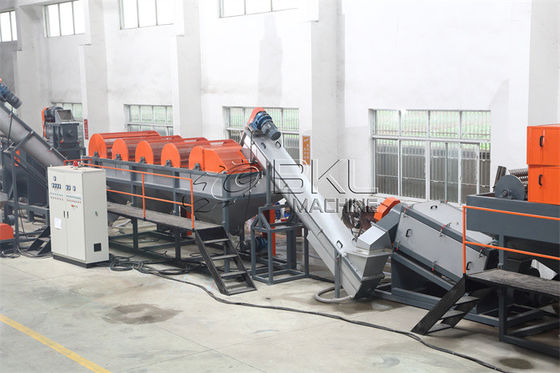

PP Woven Bags Plastic Recycling Machine Washing Line

PP woven bags ton bags washing line in plastic recycling machine

1. Final products has good quality.

1. Belt conveyor: For waste material infeeding.

2. Shredder: For material size reduction. Single shaft shredder & Double shaft shredder could be all choosed as per different plant's needs.

3. Crusher/Granulator: Wet crushing system.It used for material size reduction and pre-washing.

4. High speed Friction washer( Scrub washing machine): High speed friction washing could achieve a good cleaning effects through the blades on the beating and spray. This machine is suitable for broken film and Plastic flakes washing.

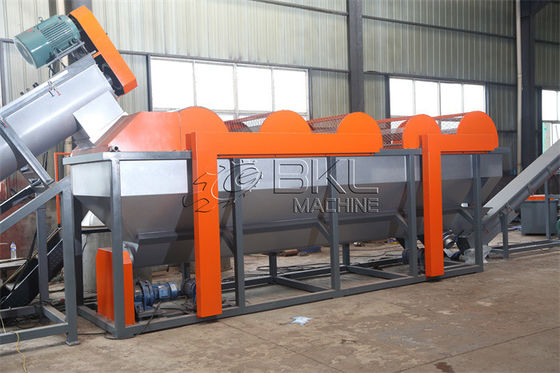

5. Sink & Float separation tank : for impurities precipitating separation and wash the material more clean.

6. Horizontal dewatering machine( Dehydrator):This machine is mainly used for the cleaning of waste plastic after mechanical dewatering and drying, the spindle through high speed rotating threw the plastic and water to the screen, water releases by screen, while the plastic is from the outlet to be out of the machine enters into the next procedure. The machine has a good drying effect and high energy efficiency. The blade is made of high wear-resistant materials, can be replaced more conveniently.

7. drying pipes & transition silo: Hot air drying and transportation to final storage silo.

The whole line is automatically controlled from feeding to drying.
